OEM Factory Fork Seal/Bushing Kit for 2001-2005 GL1800

Honda

OEM Factory Fork Seal/Bushing Kit for 2001-2005 GL1800
Your Price
$112.99
MSRP:
$119.99
Item #:
HOGL18FRK0105
this item qualifies for FREE SHIPPING!
112.99

OEM Factory Honda Fork Seal Kit for 2001-2005 GL1800 Gold Wing motorcycle is a complete kit containing everything you need to do the job right. Don't just replace a leaking fork seal without replacing upper and lower bushings that are usually worn.

Good mechanics always repair BOTH forks if one is leaking due to the other side always tends to leak shortly afterwards. Kit includes O-rings, replacement bottom drain bolts and crush washers and everything you need for BOTH forks.

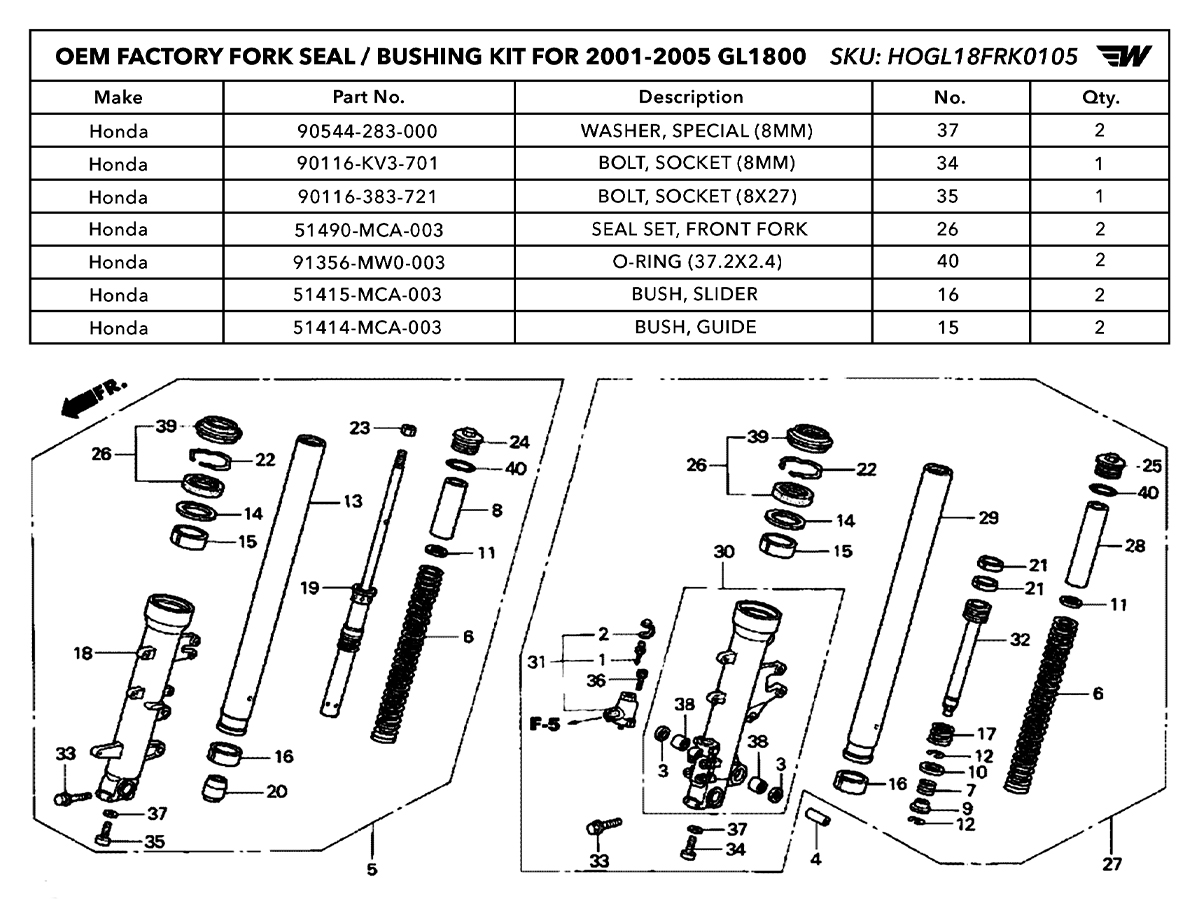

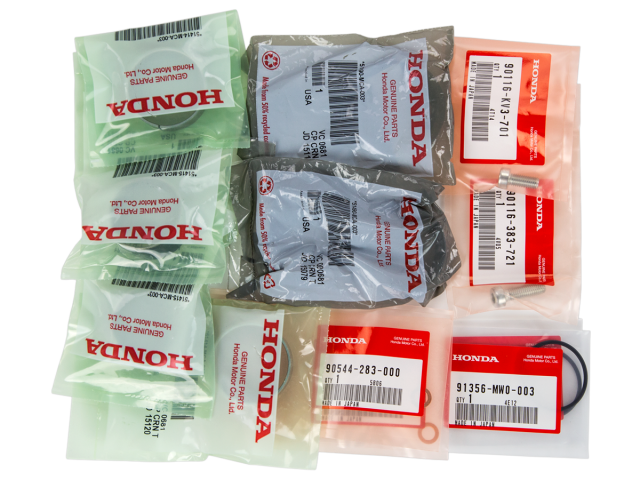

Kit Contains The Following Genuine Factory Honda Parts:

2 - 90544-283-000 WASHER, SPECIAL (8MM)

1 - 90116-KV3-701 BOLT, SOCKET (8MM)

1 - 90116-383-721 BOLT, SOCKET (8 x 27)

2 - 51490-MCA-003 SEAL SET, FRONT FORK

2 - 91356-MW0-003 O-RING (37.2 X 2.4) (SHOWA)

2 - 51415-MCA-003 BUSH, SLIDER

2 - 51414-MCA-003 BUSH, GUIDE

14 Member Reviews

No_photo
8/3/2015
Tony
Perth, AU
50_stars
Fork Seal Kit

So easy to install that I ended up doing three GL1800 in 2 weekends
Mine were OK but I felt it was time for a change at 150Km and my two mates both had leaks
Everything required and with the Honda manual it was not difficult at all
Much cheaper than paying a mechanic $150 per hour (yup that is what we get charged in Australia because there is limited competition between Honda dealers.

Much prefer to do my own work as it saves money and I am certain the job is done right the first time

yes no

Magick_image.php?path=uploads%2fupload_0001646222
1/19/2015
Tumbleweed
Bradenton, FL
50_stars
Don't cut corners

Here you go people the whole seal kit for your rebuild . It is the OEM kit . You will be surprised what's going on in side those stock forks . I highly recommend the progressive shock products if you need to get in to this rebuild.... trust me just do the job right the first time.

10 out of 12 people found this helpful
yes no

Magick_image.php?path=uploads%2fupload_0001645305
8/2/2014
Randy
Tell City, IN
50_stars
Very Convenient

Thanks, every thing I needed except the oil. As stated below can't go wrong with OEM. Just what I needed to rebuild my 2001 forks.

12 out of 12 people found this helpful
yes no

No_photo
7/25/2014
Ron
Wheaton, IL
50_stars
great deal

Everything you need but the fork oil. You can't go wrong with this kit part numbers on everything package part.

11 out of 11 people found this helpful
yes no

Magick_image.php?path=uploads%2fupload_0001639487
12/31/2013
Hallsey
Barrie, CA
50_stars
Winter project

Can't go wrong with OEM. Everything I needed for 2007 traxxion rebuild.

16 out of 16 people found this helpful
yes no

  • GL1800 2001-2005
  • GL1800 Trike 2001-2005
