Easily connect all your LED lighting to one central location and keep your wiring neatly routed to the new PATHFINDERLED LIGHTING DISTRIBUTION/ISOLATOR HUB. PATHFINDRLED lights can connect via plug n play directly into this canbus isolated hub. Other lighting such as goldstrike or kuryakn can also connect plug n play via adapters sold separately. Now you can power/charge your USB electronics by connecting them to the integrated USB-C ports (2x) and further isolate extra wiring/adapters. 10amp trailer/accessory wire output is provided on the unit. Smart E-fuse protection on all output and a Heavy Duty 40amp inline fuse protects the unit from the battery.
Two (2) USB-C Charge Ports (15w ea) Power/charge your phone/gps/dash cam. Built-In Smart eFuse + an inline power fuse for comprehensive protection. Independent protection for each circuit - reset via ignition On/Off Total Power Capacity: 40 amps LED status indicator Six (6) Wire Trailer Harness (10 amps) can also be used for accessory 20 individual Power Ports (3amps ea) - 10 Right and 10 Left (Brake / Running / Turn)
All PATHFINDERLED SHIPPED LIGHTS HAVE PLUG N PLAY CONNECTIONS TO PLUG DIRECTLY INTO THE LH40GW.

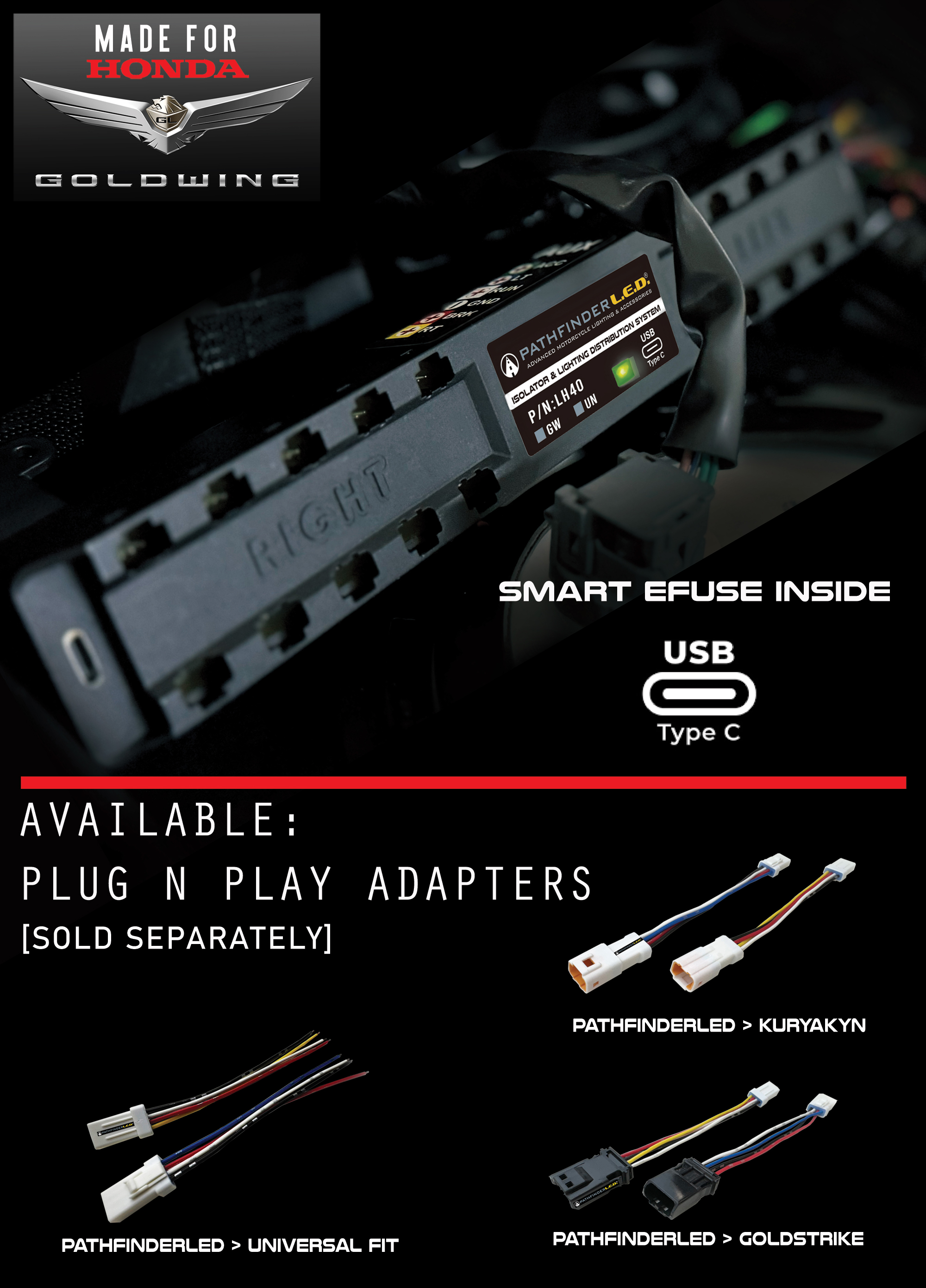

Available and Sold Separately: PATHFINDERLED TO GOLD STRIKE ADAPTER (PN#P2GSA) PATHFINDERLED TO KURYAKYN ADAPTER (PN#P2KNA) PATHFINDERLED TO UNIVERSAL ADAPTER (PN#P2UNA)
|
