2.1 Amp Weatherproof USB Power Port with quick charge 3.0 Technology
This compact, easy to mount, all-weather 2.1 amp USB Power Port is the answer for powering and charging your USB devices including cell phones, smart phones, most GPS units, MP3 players and most digital cameras. It mounts easily to any surface using the patented Universal Mounting System.
Quick charge 3.0 technology provides fast charging for Android devices with quick charge capability.
Charging power levels up to 18 watts contrast with the USB standard maximum charge power of 10 watts.
Low quiescent current allows direct connection to the battery without concern about discharging the battery over time.
A removable, replaceable Brulloy™ seal cap protects the power port from dust and water. USB cable connection is all-weather when used with a 3BR Powersports’ patented TAPP CAPPed cable. TAPP kit includes one TAPP CAPP kit for use on any USB cable.
Features:
- Input Voltage: 12V ± 4.0V
- USB (Output) Voltage: 5V ±.25V
- Output Current: 2.1A Max.
- Output Current Quick Charge: 18 watts Max.
- Quiescent Current (no load current): 1.7 mA (0.0017A)
- Maximum charge rate for all USB phones and tablets including iPhone, iPad and Android tablets.
- Protection Rating: IP64 (Water wash down) when capped or when TAPP CAPPed USB cable is plugged in. None when a standard USB Cable is plugged in.
- Operating Temperature Range: 0°F to 122°F (-15°C to 50°C)
- Cable Jacket: Abrasion resistant, UL/CSA listed, meets Mil-I-631D, -40°F to 221°F
- Cable length: 6ft (2M)
- Electrical protection: Splash proof ATC fuse holder with 7.5A fuse; internal auto-resetting fuse,cinternal auto over-temp power control, diode protected against inadvertent reverse polarity.
- Enhanced electrostatic discharge damage (ESD) resistance
- Wire Terminals: Crimp/Solder .25” Ring (battery screw size)
- Seal Cap: Removable, replaceable Brulloy™ material
- 3BR Universal Mounting System (Patented)
- TAPP CAPP provides all-weather all the time connection to device

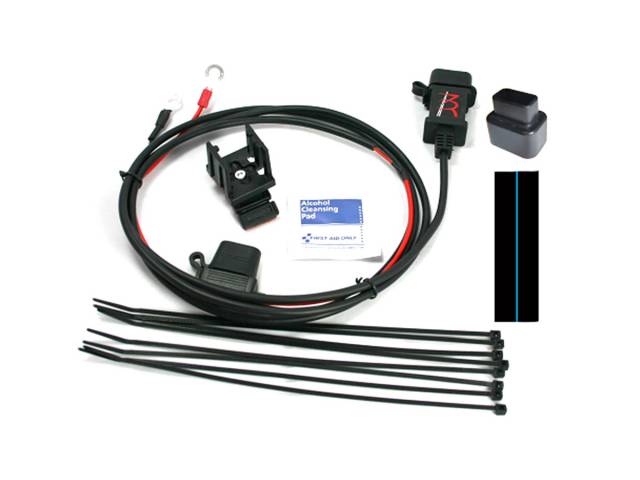

- Installation kit includes the GEN5 TAPP, Universal mounting bracket, TAPP CAPP kit, cable ties and alcohol swab for cleaning mounting surface.
|
