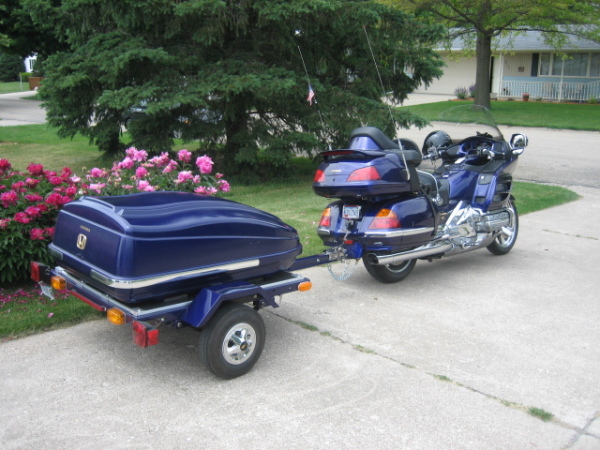

Illusion Blue 2002 Honda Goldwing
Bike 2:
- No Bike 2 -
Bike 3:
- No Bike 3 -
Louie & Michelle has not yet written any comments.
Wig Wag Brake Modulator
ITEM CODE: PU20500031, SKU: PU20500031
05.11.2009
5 Stars
| I will say the wiring is pretty straight forward red/white, white/red to brake light bulb orange or yellow to brake light switch and black to ground. I own a gl1800. Here is how I connected mine. I did not want to alternate between right and left as I thought that might confuse someone that I was turning??? I hooked mine up to alternate between inner and outer trunk brake bulbs. To make the connections I soldered longer coded wires to each of the leads to make a harness. I then decided that I hate to remove the seat and removed the lower trunk trim only. You just have to remove the trunk side mouldings, and seven trim screws to loosen the lower trim. Then pull out gently and back and you have access to the trunk taillight wiring. I used the double sided tape to mount the module under the right tail light inside the trunk. This puts it out of the weather and you can run your harness out through the trunk latch opening. Cut and pull back the tape on the wiring harness directly under the taillight. I had my young bride of 33 years hold the brake while I cut ONE of the green with red trace wires to each sides brake light. That let me know if I cut the inner or outer circuit without removing the lamps. I then wired the lamps as directed. I used the cut brake light wires on one side as my brake on circuit. I then cut the other wire on each side and wired the opposite side of the module. I stripped back wiring coating from one solid green wire without cutting the wire. I soldered my ground wire to this circuit. I heat shrank all my connections and reinstalled the trim. Now my lights alternate inner/ outer then blink all four and then stay on. I love it! I had checked with local law enforcement and they were not keen on the idea of alternating side to side, even if they were not sure it was illegal in Iowa. Good Idea to check first. |
