LED H7 Headlight Bulb Kit for GL1800

Electrical Connection

LED H7 Headlight Bulb Kit for GL1800
Your Price
Item #:
this item qualifies for FREE SHIPPING!

From the ground up, this is the most superior LED headlight bulb you can install.

  • Thermal “Air Flux Cooling” naturally draws heat out and away from the housing.  No fans.
  • Billet aluminum spacers for superior heat transfer from bulb to heat sink.
  • Phillips ZES LED’s that were designed exclusively for automotive LED headlight applications.
  • Light point sources are identical to a standard H7 bulb for full reflector splay.
  • Same bulb for either high or low beam (same as OEM).  Pitch angle completely adjustable.
  • Instant operation unlike HID.  Unaffected by temperature or power cycling.
  • Constant current power regulator in a separate housing makes the bulb no larger than stock.
  • Zero noise induced into audio system.  Will not affect CB operation or require higher squelch settings.
  • No trimming of the rubber boot required.
  • One kit includes 2 each of the following; bulbs, power regulation units and spacers.


Element specifications (per element):

  • 6063 Aircraft aluminum construction.
  • 6000k color rendering.
  • 4000 lumen.
  • 360 degree light beam angle.
  • 24 watt per bulb.
  • 2.0amp (+/- .2) power draw.  Stock halogen is 4.58amp.
  • H4 connector for full plug and play operation.

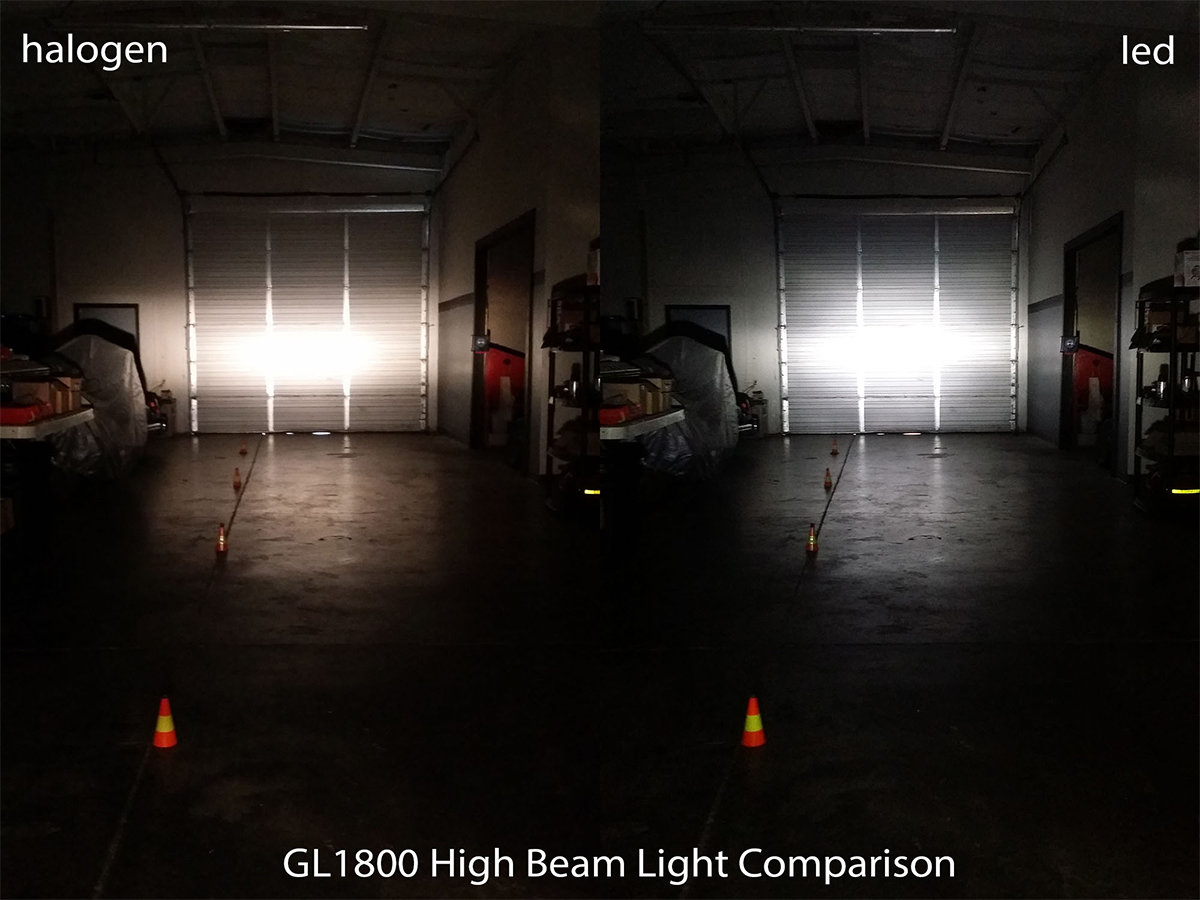

The comparison pics were produced in a GL1800 headlight housing, with only one side being shown.

10′ between the markers and 50′ from the light source to the roll up door.

Your light will be double.

Very important point. EC does not DO NOT glue their spacer to the bulb assembly. They have seen other companies glues ‘gas off’ inside the headlight, leaving a film on their reflector. This decreases your light output.

4 Member Reviews

lakeworth, FL
have hid in low beam led in high beam

hids were hard to put in low beam never fit in high these led look very good fit good can not go wrong

1 out of 1 people found this helpful
yes no
Love these lights!!

I ordered these in Nov 2016 and they finally shipped in Jan 2017. I took a partial day to work on the install of the lights and got the low beams swapped with no problem. I went to do the high beams and there were no spacers in the kit for the bulbs. I called Wingstuff and explained the situation. The person I spoke with took my name and number and said he was going to contact Electrical Connections about it. He called me back in about 30 minutes and said he had spoken to Electrical Connections and they would ship out a set of spacers for me the next day (Friday). On Monday, I had the new spacers and had to wait till Wednesday to install the bulbs. Little did I realize what an ordeal it would be to change the bulbs. The left high beam required me to pull the top shelter off and move a big wire bundle out of the way to get to the bulb. Took me 2 hrs to get the one bulb replaced!! In comparison, the right high beam took 15 minutes. I finally got a chance to ride at night with the new bulbs in and I love how much brighter they are.

This is more a compliment to Wingstuff and their staff for making things right for me as a customer and selling great products like these lights. Thanks guys and gals!!!!

8 out of 8 people found this helpful
yes no
No butt
Great purchase!

After buying LED light from my local Powersports that were a pain to try and install, I returned them and ordered these LED H-7 bulbs from my local trike shop. They got them from Electrical Connection and I had them installed. Great bulbs. You keep everything stock so if you want to go back to stock you can. Just make sure you keep the adaptor for the H7 bulbs. So far I am satisfied with the output and brightness.

19 out of 21 people found this helpful
yes no
Jacksonville, FL
Well Made

I ordered these for my 2012. It took several weeks for the order to be filled as Wingstuff was out of stock. No fault of their's. When it arrived and I saw the packaging, I though I accidentally ordered and Apple iPhone by accident. The packaging was Apple-esque. Very impressive. Usually Electrical Connection items are package in the most basic of plastic zip lock baggies. The quality didn't stop at the packaging. Having used automotive HID light sets on my wing in the past, I immediately got the sense that this kit was made specifically for the Wing. No modifying the boot or ill-fitting light bulbs with this kit. The quality of materials and the fit and finish is astounding. The install was very easy and straight forward and isn't much different than replacing the regular OEM bulbs. The LED bulbs give a near perfect light pattern of clean, crisp White light.The voltage regulator (ballast) are very small and easy to locate and mount behind the fairing or anywhere near the headlights. The heat sinks will fit outside of the rubber boot. This kit comes with everything you need for a successful install.

38 out of 42 people found this helpful
yes no
