Wig Wag Brake Modulator

Back Off

Wig Wag Brake Modulator
Your Price
$36.99
MSRP:
$42.95
Item #:
PU20500031
36.99

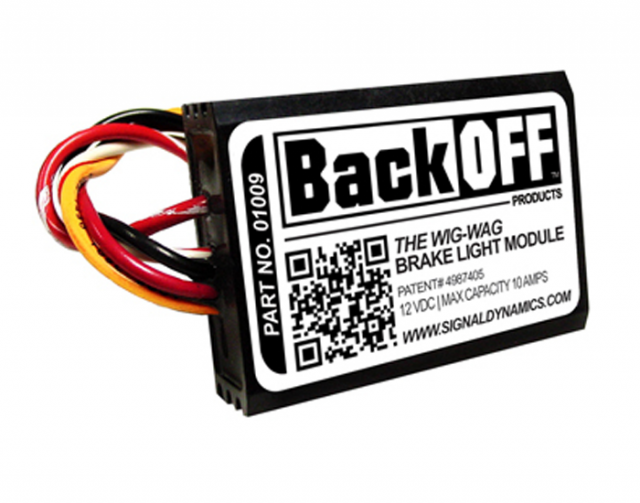

Compact solid state electronic module converts your ordinary brake lights into your choice of TWO attention getting, visual alerting signals. Easily fits any Twin Brake Light found on ALL Honda GL1500, GL1800 Goldwing. Easy Installation..

Note: Designed for motorcycles equipped with two brake lights located side-by-side such as 1988 through the newest Honda Goldwings.

MODE ONE - Emits 4 alternating quick flashes of the left and right brake lights, followed by 3 short flashes and 1 long flash (3.5 seconds) of both brakes lights. The 3 short flashes and 1 long flash pattern automatically repeats itself as long as the brakes are held.

MODE TWO - Emits a visual signal of 4 alternating quick flashes of the left and right brake lights, followed by 3 short flashes of both brake lights and then the brake light remains steady until the brake is released.

63 Member Reviews

No_photo
10/23/2016
david
el paso, TX
50_stars
Wiring configuration

This product is awesome. The modulation pattern really grabs your attention, and it is even more awesome at night. Discerning Goldwing wiring was no easy task and made this much more difficult than it should be. I have a 2001 Goldwing (just bought used with only 23K miles!). There is only ONE brake light wire going to the left side (trunk). It is green with a red stripe. This wire controls both left side brake lights. The right side (trunk) brake light has TWO brake wires, both green with red stripe. One controls one bulb, one controls the other bulb. There are two brown/white wires. These are for the driving lights. Do not cut them. There are two solid green wires. These are the grounds. When you make your connections, you must connect both power-side green/red wires to the red or orange wire from the module. You must connect both bulb side green/red wires to the red/white stripe wire from the module. And, you must connect the black ground wire to both both green ground wires. You will have to cut both wires and connect all four ends to the ground wire. I had to splice and add quite a bit of extra wire. Pain in the neck process, but the end result was worth it.

2 out of 4 people found this helpful
yes no

Magick_image.php?path=uploads%2fupload_0001658301
8/29/2015
CR
Oregon City, OR
50_stars
Great product

I especially like the new pattern it gives off. Two separate blink rates before going solid. Definitely gets attention.

1 out of 1 people found this helpful
yes no

No_photo
10/10/2014
Will
Renton, WA
50_stars
Back Off Wig Wag Modulator

Ok, So I had this unit installed at my local honda dealership Henshaw honda on 10/09/14 and well worth paying the experts to do this, The tech showed me a few things had I done wrong it could cost a lot more to have repairs done than the cost of the install, The unit works as advertised, I'm lovin it.

7 out of 10 people found this helpful
yes no

No_photo
9/29/2014
Will
Renton, WA
50_stars
GL1500 SE

Has anyone installed this unit on the GL1500? All the reviews I see are for the GL1800.

1 out of 2 people found this helpful
yes no

No_photo
8/14/2014
Larry
Phoenix, AZ
50_stars
Very nice SAFETY item!

I installed mine on both top and bottom trunk brake lights after replacing the bulbs with good quality bright 7440 leds. Additionally I have the spoiler LED wired to emit quick flashes for 4 seconds. Arizona revised MVD statute allows up to 5 seconds of continuous flashing for non emergency use.
Found out this is a GREAT SAFETY ITEM when someone is tailgating you at almost 75 mph! Jackass backed off immediately then took closest exit!

10 out of 10 people found this helpful
yes no

  • GL1100, GL1200
  • GL1500, GL1500 Trike
  • GL1800 2001-2016
  • GL1800 Trike 2001-2016
  • F6B 2013-2016
  • Touring / Bagger
