OEM Factory Fork Seal/Bushing Kit for GL1500

Honda

OEM Factory Fork Seal/Bushing Kit for GL1500
Your Price
$104.99
MSRP:
$124.99
Item #:
HOGL15FRK
this item qualifies for FREE SHIPPING!
104.99

OEM Factory Honda Fork Seal Kit for GL1500 Gold Wing is a complete kit containing everything you need to do the job right. Don't just replace a leaking fork seal without replacing upper and lower bushings that are usually worn.

Good mechanics always repair BOTH forks if one is leaking due to the other side always tends to leak shortly afterwards. Kit includes O-rings, replacement bottom drain bolts and crush washers and everything you need for BOTH forks.

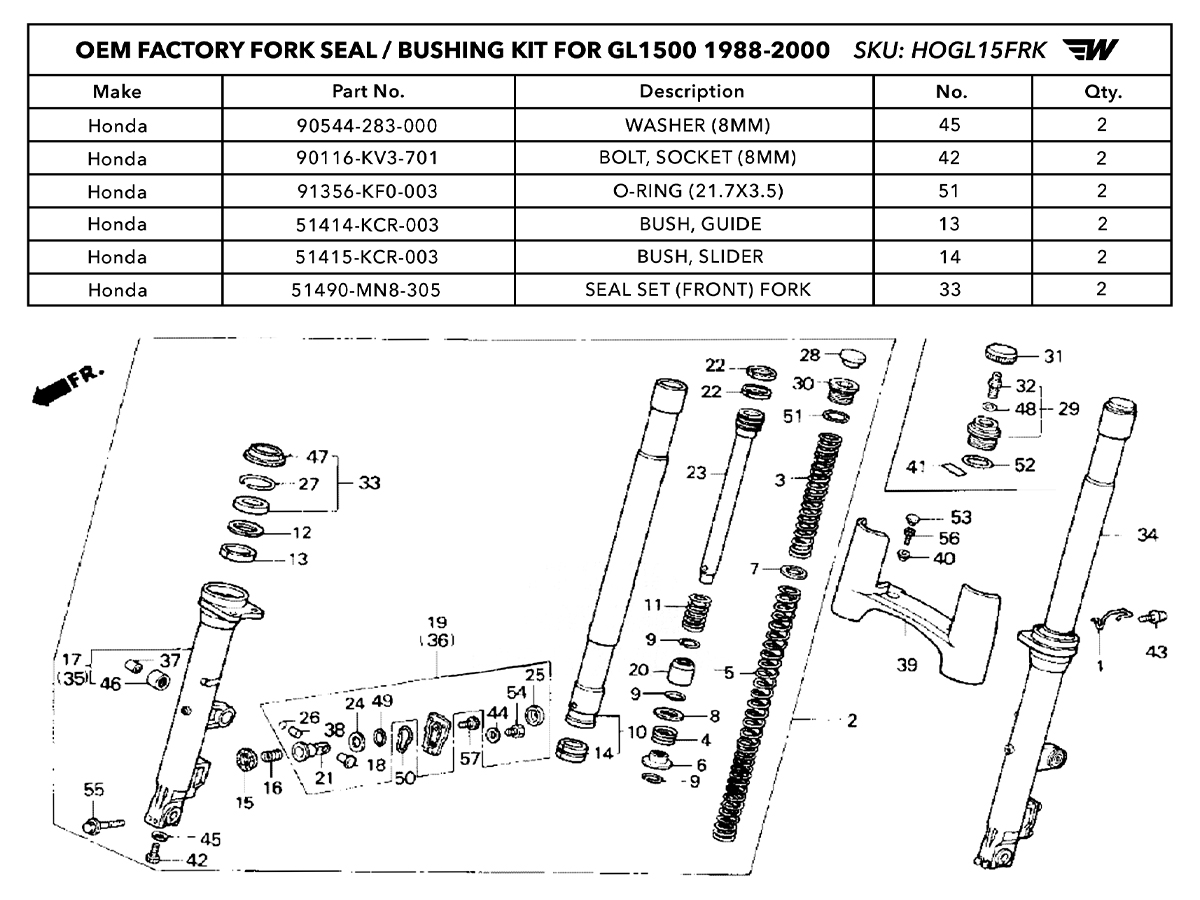

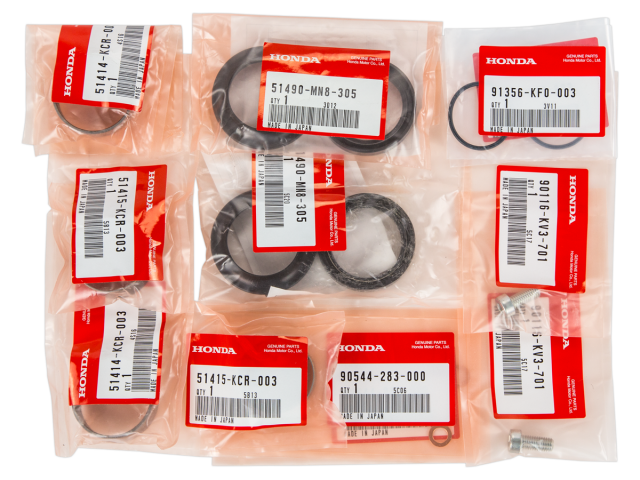

Kit Contains The Following Genuine Factory Honda Parts:

2 - 90544-283-000 WASHER (8MM) Item #45

2 - 90116-KV3-701 BOLT SOCKET (8MM) Item #42

2 - 92356-KF0-003 O-RING (21.7 x 3.5) Item #51

2 - 51414-KCR-003 BUSH, GUIDE Item #13

2 - 51415-KCR-003 BUSH, SLIDER Item #14

2 - 51490-MN8-305 SEAL SET (FRONT) FORK Item #33

3 Member Reviews

No_photo
2/17/2015
Daniel
Elephant Butte, NM
30_stars
Check parts upon receipt!!!

It was great to find a complete package of parts for the rebuild, but when I checked my package, I didn't verify NUMBER FOR NUMBER and LETTER FOR LETTER that the parts on the packing list matched the parts in the bag. One pair of O rings were for a CBR900, not a GL1500! Middle two letters were different. I'm too far along in the rebuild to stop for replacements, but fortunately the ones that are on the fork are in good shape and I can reuse them, hoping for the best!

yes no

No_photo
4/10/2013
Jeff
50_stars
Very complete-makes the job easy

This was my first time changing fork seals and this kit made it easy, it included parts that I normally wouldn't think about ordering (washers and bolts) but needed to be replaced. Please check the kit when you receive it-mine was picked wrong and required me to call customer service. Tom at customer service was very helpful and got me the part I needed right away to finish the job.

7 out of 7 people found this helpful
yes no

Magick_image.php?path=uploads%2fupload_0001643331
9/30/2010
Aussie Dingo
Tannum Sands, AU
50_stars

Had this done same time as new springs put in by my mechanic, who couldn't believe how good and complete a kit it was, had everything needed to complete the job and he stated that here in Aus you just cant buy such a complete set as this one.

8 out of 8 people found this helpful
yes no
