Black LED Accessory Switch

Show Chrome

Black LED Accessory Switch
$62.99
Please make a selection below for exact price

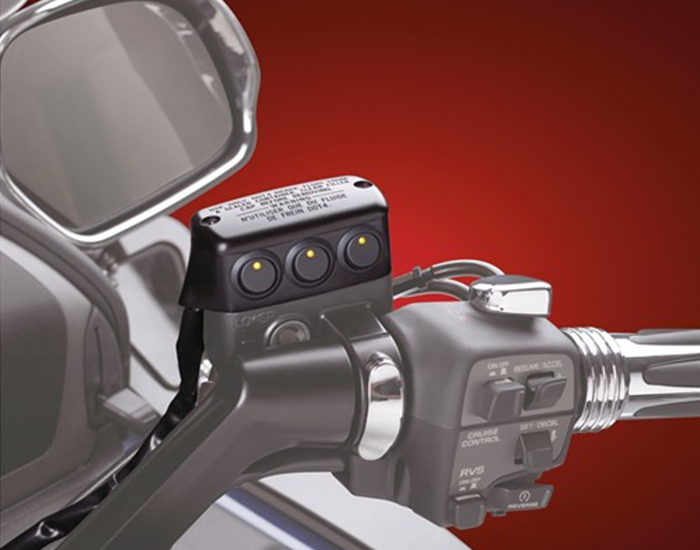

Polished Black Brake Side Switch Block with 3-rocker style switches has Bright LEDs in each indicating when an accessory is active. Great for wiring lights and other accessories.

Great looking and the high quality black finish gives that factory look on any motorcycle.

32 Member Reviews

No_photo
5/7/2016
Don
50_stars
QUESTION !!!!

I have this on my bike, but I don't know where the wire ends up? Is it under the seat?, in a compartment? Behind a compartment? Mine is installed on my left handle. Thanks in advance for any assistance.

0 out of 1 people found this helpful
yes no

Magick_image.php?path=uploads%2fupload_0001639499
11/13/2015
jamman
Rockford, IL
50_stars
Safety in mind!

I purchased this item for both my bikes. If you have followed my reviews up to this one you will see I am a big advocate of chrome and bling. Please note! In the cockpit of my wing I want it "BLACK" or dark. Don't want shinny object reflecting back into my eyes from the sun. I went for the left side install. This way I don't have to remove my hand from the throttle.
Also, it's easier to run all your wires down the handle bar arm and into the area under the left pouch.
Another hint to help you fellows constantly opening the side battery cover, I mounted a fuse block on the back inside wall of my truck. I simply run a wire from that fuse block to my power wire and switch wire under the left pocket. This way when you blew a fuse or need to review the aux. fuse block it's handy and easy to get to.

5 out of 6 people found this helpful
yes no

No_photo
8/7/2014
AL
50_stars
Clutch Side Master Cylinder Switch Block (LH)

Just a concern before I placed my order for this product was the wire lengths leading from the switch block.

Switch leads out are approximately 31" each on blue, yellow and white wires.
Power leads in are 67" in length on red and black wires.

All wires are covered by a soft/solid (not spiral or corrugated) PVC loom that will extend down the handle bar run.

"Accessories may require their own relay and wiring as switches are rated at 20 amps." This quoted from install instructions.

Looks like OEM, great fit and finish.

Mike

11 out of 11 people found this helpful
yes no

No_photo
1/19/2014
Randall
Alpine, CA
30_stars
Re: Great Looking - Installation Problem

I installed the black switch box over clutch side. The switches quality is outstanding fit & finish and there was no leakage. The wire blue, yellow,and white were minimally 12" too short. Obviously, this extended my overall installation time to two hours to extend wires. Added length was necessary for me to allow wires to be fully routed and hidden. All wires all colors should be the same length as red and black allowing the installer to shorten depending on application and route installer prefers. Small indicator lights make sighting easy and no confusion as to what light is on. Switch block definitely has oem appearance. I'm happy with end result.

7 out of 7 people found this helpful
yes no

Magick_image.php?path=uploads%2fupload_0001653104
6/10/2013
Larry
Jacksonville, FL
50_stars
Excellent Design

I have just installed these and they work and look great. I removed the switches from the housings (Right and Left) and sent them to ww.mywingbling.com to have painted. Very easy install. My only advise would be that prior to loosening and removing the fluid cover, loosen the bar mounting clamp so you can position the fluid housing as level as possible. This will eliminate any fluid from seeping out onto the paint. But if by chance it does happen, make sure you have alcohol and a rag near by to clean it off ASAP. Otherwise it will damage the paint. I have put a picture of the switch on my profile.

12 out of 12 people found this helpful
yes no
